Mindray BeneHeart L1-A-CPR
Fully automatic AED with CPR Feedback.

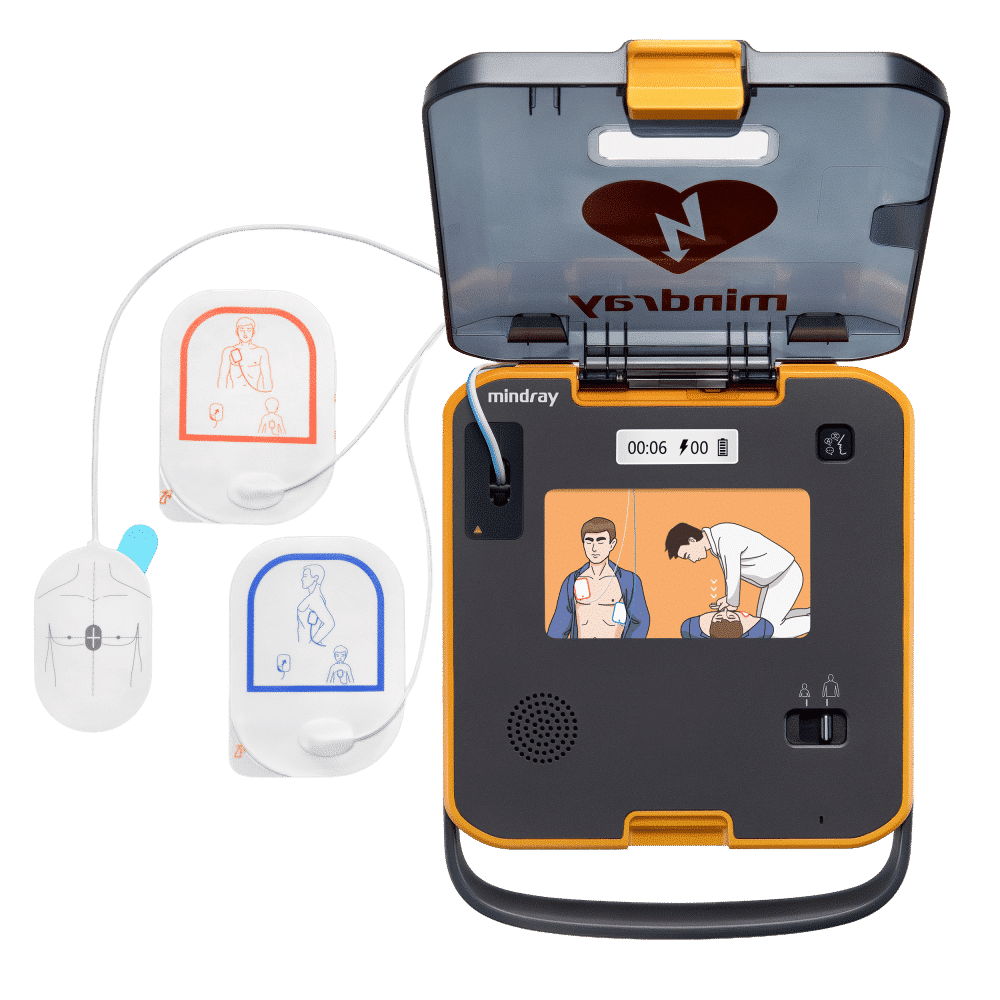

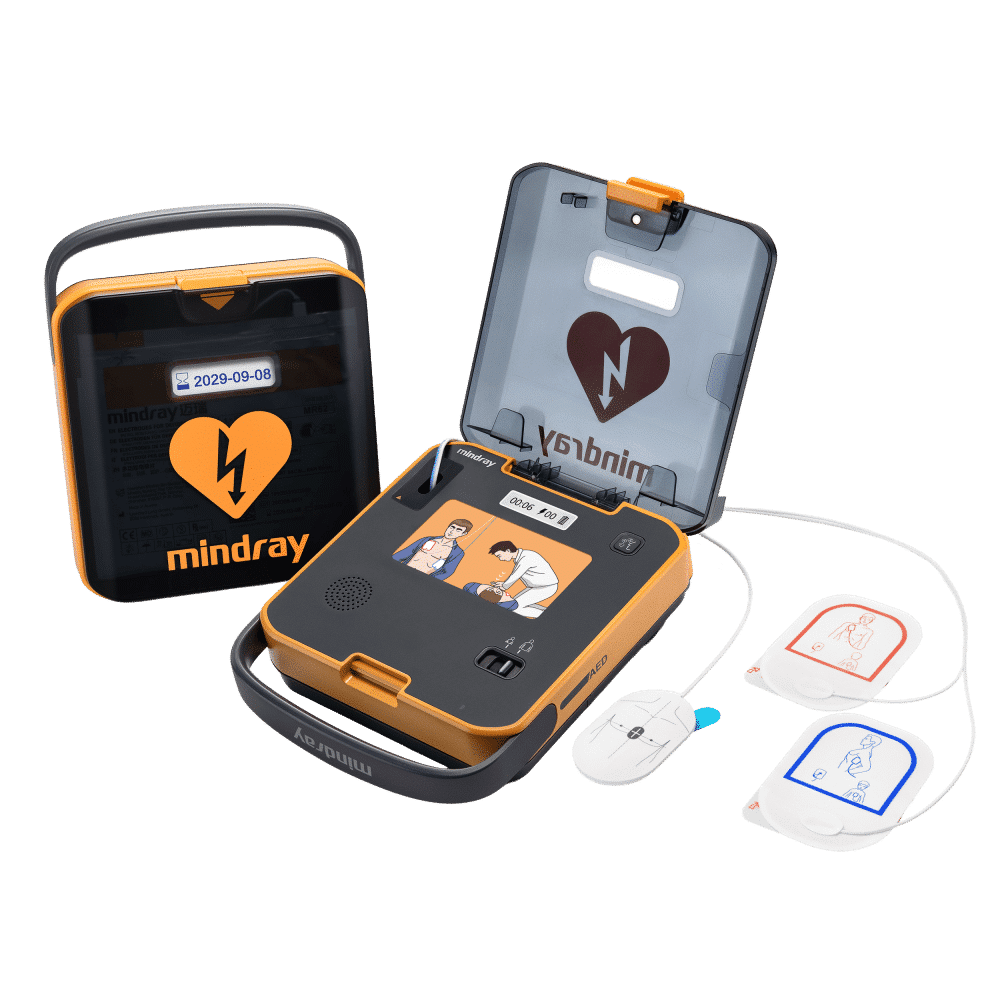

The L1-A-CPR is the fully automatic BeneHeart L1 supplied with MR66 CPR-sensor electrodes. CPR Coach uses the sensor to measure compression rate and depth during the rescue and prompts the rescuer toward 5–6 cm at 100–120 compressions per minute.1 Defibrillation performance is identical to the L1-A.
CPR Coach with MR66 electrodes
The MR66 sensor measures compression rate across 40 to 160 cpm to ±2 cpm, with depth and rate prompts delivered while compressions are underway rather than reported afterwards.
Fully automatic delivery
The device delivers the shock itself once a shockable rhythm is confirmed, with voice prompts to clear bystanders first.
QShock™ Plus
Pre-charging during CPR shortens the compression pause before the first shock and before every shock after it, to as little as five seconds.2
Mindray L1 vs L2
| Specification | Mindray L1 | Mindray L2 |
|---|---|---|
| Operation | Semi-auto / Auto | Semi-auto / Auto |
| Display | 1.96" dot-matrix LCD | 4.3" colour touchscreen |
| Rescuer guidance | Voice prompts + CPR metronome | Animation + voice + CPR feedback |
| Capacity | 400 shocks @ 200 J | 350 shocks @ 200 J |
| Operating time | ≥ 15 hours | ≥ 12 hours |
| Energy | Up to 360 J escalating | Up to 360 J escalating |
| Charge time | 0 s effective — pre-charged during analysis | 0 s effective — pre-charged during analysis |
| Weight | 1.9 kg | 1.9 kg |
| Dimensions | 196 × 191 × 65.5 mm | 196 × 191 × 65.5 mm |
| Ingress rating | IP55 · 1.5 m 6-surface drop | IP55 · 1.5 m 6-surface drop |
| Models Available | ||
| Auto | L1-A | L2-A |
| Semi | L1-S | L2-S |
| Auto + CPR sensor | L1-A-CPRThis device | — |
| Semi + CPR sensor | — | L2-S-CPR |
Figures from the Mindray BeneHeart L1 / L2 datasheet and the L series operator’s manual (H-046-028014-00). Specifications are subject to change without notice.
Mindray L Series AEDs
Zero Compromise
The Mindray BeneHeart L1-A-CPR is available in Australia through Aero Healthcare.
- Mindray BeneHeart L Series brochure (L1 / L2), Shenzhen Mindray Bio-Medical Electronics Co., Ltd. Source for 38% smaller / 22% lighter, up to 360J escalating energy, CPR Coach depth and rate guidance, ResQNavi™ and AED-Alert 2.0.
- Mindray QShock™ Plus — L series AED defibrillation technology. Source for the five-second post-CPR re-shock and comparative shock-cycle timing.
- Mindray BeneHeart L1 / L2 Datasheet. Source for 1.9 kg weight, pre-shock pause under 5 s, IP55, 1.5 m 6-surface drop, 5-year battery and pad standby, and all technical specifications.
- European Resuscitation Council Guidelines 2025. Each minute of delay to defibrillation is associated with a higher probability of failure to terminate VF and lower probability of survival to discharge.
- Tang H, Wu R, Yin L, et al. Escalating vs Fixed Energy Defibrillation in Out-of-Hospital Cardiac Arrest Ventricular Fibrillation. JAMA Netw Open. 2025;8(4):e257411.
Distributed in Australia by Aero Healthcare. Specifications may vary based on installation environment and usage conditions. For details, consult the manual.
This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
