Description

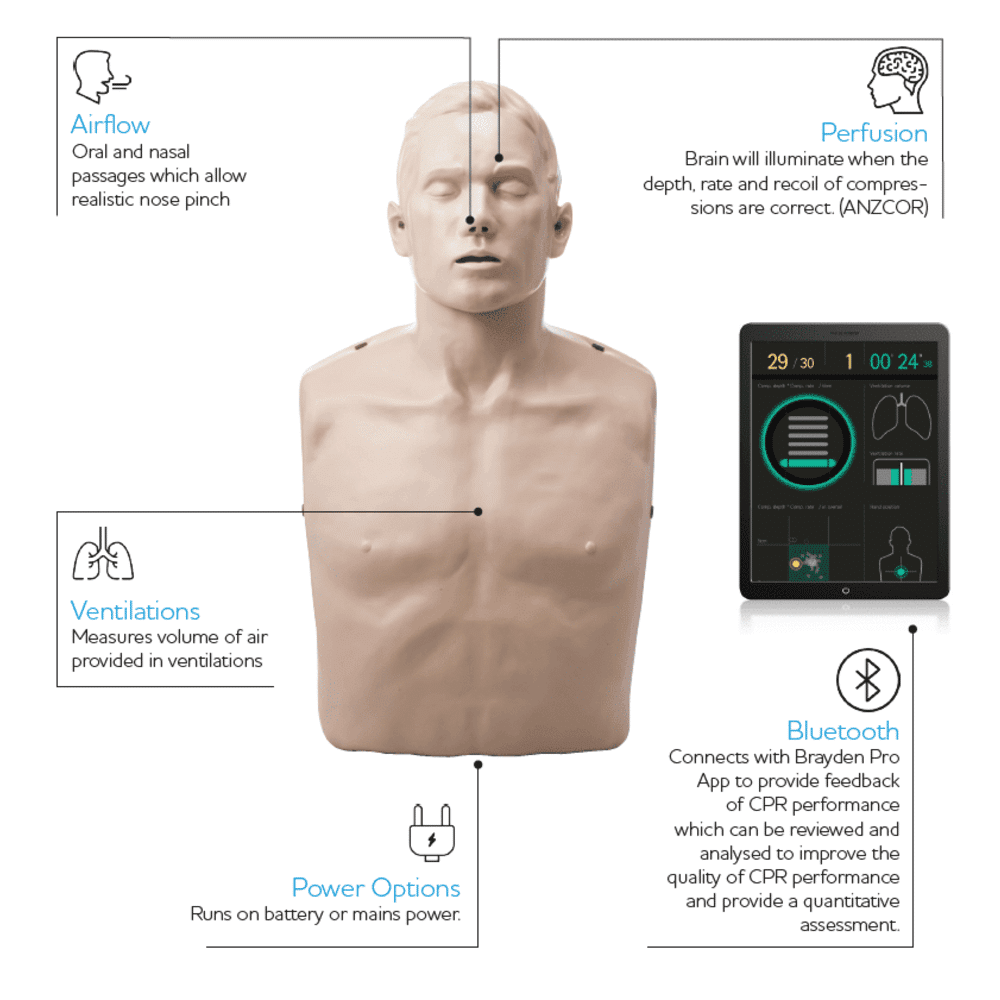

All the benefits of the IM13-R Brayden CPR Manikin, plus sensor data output via bluetooth to the free Brayden Pro App. This provides trainers quantitative data both in real time and for review to improve the quality of CPR performance and provide a numeric assessment.
The Brayden Pro provides healthcare professionals with quantitative data-driven feedback.
The Brayden Pro sends live data to the Brayden Pro App via Bluetooth to provide real-time feedback of CPR performance this data can then be reviewed and analysed to improve the quality of CPR performance and provide a numeric, quantitative assessment. Up to 6 Brayden Pro ‘s can be connected to 1 device allowing for simultaneous training and assessment. Records can be stored and easily exported via Email for easy analysis on your Spreadsheet program.
Package Contents Includes:
-
- 10 x Face Masks
-
- 1 x Extra Lung
-
- 6 x Batteries
-
- 1 x Face Skin
-
- 1 x Instructions
-
- 1 x Manikin Carry Bag
Click Here for our Dedicated Brayden Site.
Technical Specifications
| Model: | IM13-R | IM16 | IM13-S |
|---|---|---|---|
| Type: | Torso | Torso | Torso |
| Display visual flow of blood
from the heart to the brain: |
Yes | Yes | No |
| Bluetooth Connectivity / Sensor Data Collection: | No | Yes | No |
| Chest compression depth
and speed measuring sensor: |
Yes | Yes | No |
| Chest movement with ventilation: | Yes | Yes (when unpaired with App) | Yes |
| Head tilt and Chin lift for opening airway: | Yes | Yes | Yes |
| Airways system: | Non-breathing with disposable lungs | Non-breathing with disposable lungs | Non-breathing with disposable lungs |
| Ribs, Xiphoid: | Yes | Yes | Yes |
| Audible feedback: | Clicker on/off | Clicker on/off | Clicker on/offs |
| Length: | 59cm | 59cm | 59cm |
| Weight: | 6.8lb (including batteries) | 7lb (including batteries) | 6.6lb |
| Operating temperature: | 59°F to 86°F | 32°F to 104°F | 59°F to 86°F |
| Storage temperature: | 14°F to 104°F | -4°F to 140°F | 14°F to 104°F |
| Humidity: | Relative humidity between 5% and 95% | Relative humidity between 5% and 95% | Relative humidity between 5% and 95% |
| Warranty: | 2 years (excluding consumables) | 2 years (excluding consumables) | 2 years (excluding consumables) |
| Power: | AC Adapter (Input AC 100 ~ 260V, Output DC 9V 1A)
Battery C type (6 batteries) |
AC Adapter (Input AC 100 ~ 260V, Output DC 9V 1A)
Battery C type (6 batteries) |
No |
