Description

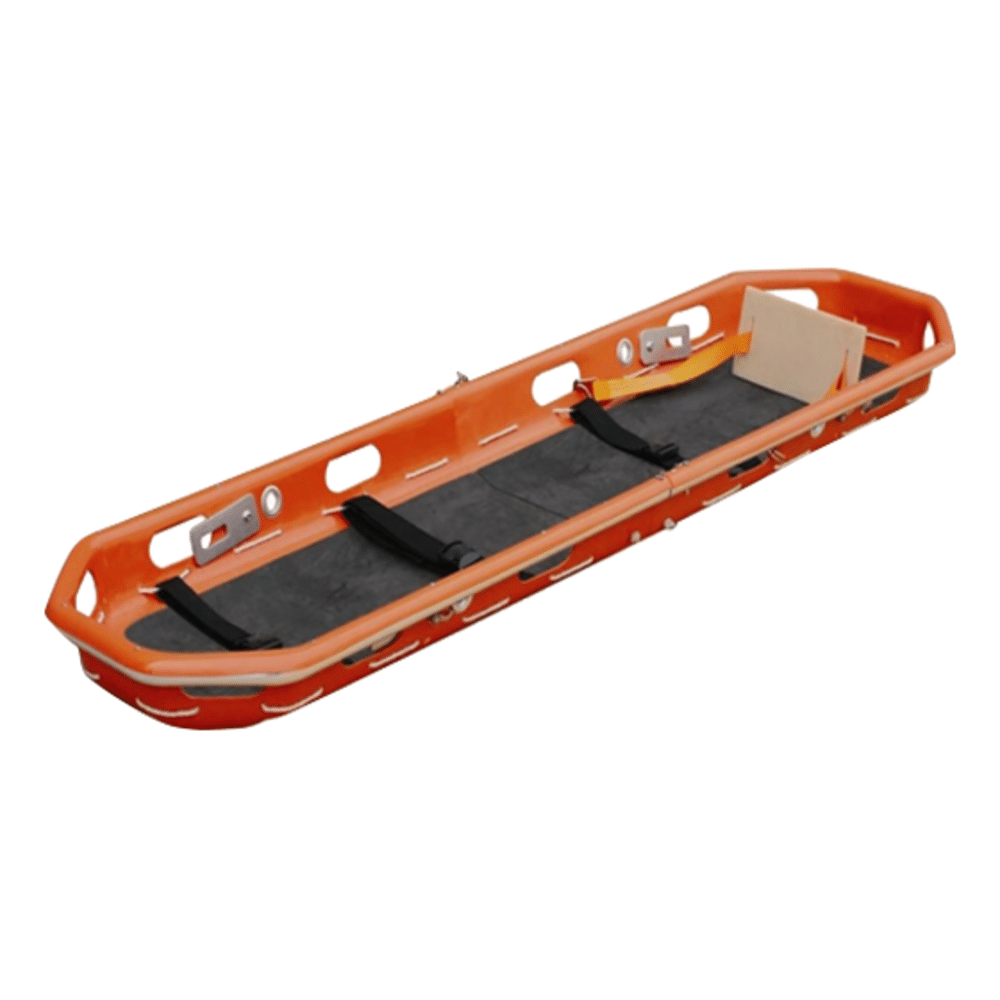

STR-08 is a rigid basket stretcher designed for patient recovery during emergency response. It is suited for lifting and transport, including airlift operations, and remains stable in complex conditions. The structure is resistant to fire, corrosion, and wear, supporting secure patient handling without folding functionality.

Summary

• Designed for patient recovery in emergency environments
• Compatible with helicopter lifting and in-air transport
• Resistant to fire, corrosion, and environmental wear
• Rigid structure for dependable handling and security

Technical Specifications

Load Limit: 159 kg
Dimensions: 220 cm x 64.5 cm x 16.5 cm
Weight: 18 kg
Temperature Range: -20°C to 60°C

Materials:

• Shell: ABS
• Frame: Aluminium
• Mattress: EVA foam
• Safety Belts & Foot Mechanism: Polypropylene

Features:

• 12 handholds
• Adjustable foot-securing mechanism
• 22 restraint attachment points
• 4 grommets for accessories
• Tension-hook footplate with 1-strap setup
• Accessories included: Bridle, footplate, 3x restraint straps

Usage Limitations:

• Not suitable for water or high-angle rescue
• Do not clean with acetone, bleach, strong acids/alkalis, or halogenated solvents
• Note: In Australia, stretchers must only be lifted by crane when placed inside a certified rescue cage. STR-08 can be used with hoists but not directly with cranes. (See AS 1418.17)

Maintenance & Inspection:

• Regular cleaning and checks for cracks, rivets, footplate, mattress, and straps
• A test-and-tagged bridle is available separately and can be ordered under SKU 4008-1

Compliance:

• Certified to ISO13485

This product is not a substitute for direct medical attention from a healthcare practitioner. Always read the label and follow the directions for use.
